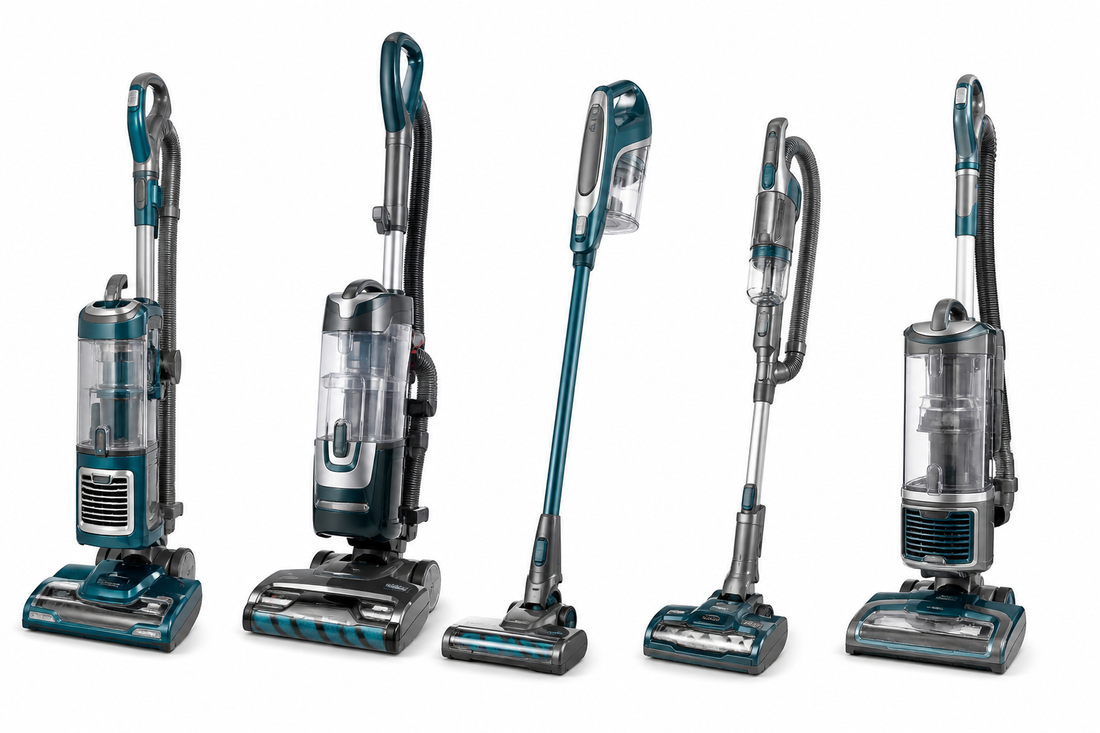

Shark Vacuum Parts: Complete Guide by Model

Shark vacuum parts wear out: filters clog, brushrolls shed bristles, belts snap, and hoses crack. Finding the right replacement part for your specific Shark model is the part that trips people up. This guide covers the most common Shark vacuum parts by series, what fails first, and how to identify which part your model needs.

Shark Vacuum Parts by Series

Shark sells vacuums under several product lines, and parts are not universal across them. Knowing your series is the first step.

Navigator Series (NV, UV prefix models)

The Navigator is Shark's most popular upright line. Common Navigator models include the NV352, NV360, NV501, NV680, NV752, and NV800. The most frequently replaced parts are:

• Foam and felt filter kit: the pre-motor foam filter and felt filter sit around the dust cup. Replace every 3 months or when suction drops.
• HEPA filter: the post-motor filter at the back of the machine. Replace annually.
• Brushroll: the rotating brush bar under the cleaning head. Bristles flatten and wrap with hair over time. Most Navigator brushrolls are held in by a single end cap.
• Belt: connects the motor to the brushroll. If the brushroll spins freely but the belt feels loose or is visibly cracked, replace it.
• Dust cup latch and lid: plastic latches crack with repeated emptying. OEM replacements are model-specific.

DuoClean Series (models with DuoClean or DuoClean PowerFins)

DuoClean models have two brushrolls: a soft front roller for hard floors and a bristle rear roller for carpet. Common models: NV803, NV803Q, ZU782, AX951, HV380. Parts to watch:

• Soft brushroll: the front foam/felt roller picks up large debris on hard floors. Tears and wears faster than bristle rolls.
• Bristle brushroll: the rear roller. Bristles bend and mat down over time on high-pile carpet.
• Filter kit: DuoClean models use the same foam and felt pre-motor filter arrangement as Navigator, but check your model number: filter dimensions vary.
• Wand release button: a common break point on DuoClean uprights.

Rotator Series (LA, NR prefix models)

The Rotator adds a swivel steering mechanism. Models include LA500, NR96, NV450, NV500. The steering pivot is the additional failure point vs. Navigator. Common parts:

• Swivel steering assembly: the joint connecting the body to the cleaning head. Cracks under heavy use.
• Brushroll and belt: same wear pattern as Navigator.
• Filter kit: foam pre-motor filter and felt filter.

Rocket Series (HV, IX prefix models)

Rocket vacuums are lightweight uprights that convert to handheld. Common models: HV300, HV301, HV382, IX140, IX141. Parts to watch:

• Brushroll: smaller diameter than full-size uprights, wears faster.
• Filters: Rocket models use a single foam filter and a HEPA filter. Check your model; the HV300 series and IX series use different sizes.
• Dust cup: the clear plastic cup cracks from repeated impacts when emptying.

ION Series (IF, IZ, IC prefix models)

ION and IONFlex models are cordless. The battery is the critical consumable. Common models: IF200, IF201, IZ162H, IZ251. Parts:

• Battery pack: lithium-ion batteries degrade after 2-3 years of regular use. Run time dropping below 10 minutes is the signal.
• Charging dock: wall-mount docks get knocked loose and the contacts wear.
• Brushroll: same wear as corded models.
• Filters: ION models use a washable filter. Replace if washing no longer restores suction.

Parts That Wear Out First on Any Shark Vacuum

Regardless of model, these are the parts that fail most often:

Part	Typical lifespan	Replacement signal
Foam pre-motor filter	3 months	Reduced suction, visible dirt buildup
Felt filter	3 months	Same as foam; replaced as a kit
HEPA filter	12 months	Musty smell, allergy symptoms worsening
Brushroll	1-2 years	Flat bristles, hair wrapping that can't be cleared, clicking noise
Belt	12-18 months	Brushroll not spinning, burning smell, visible cracking
Hose	2-3 years	Suction loss at the wand end, visible cracks near connectors
Battery (cordless only)	2-3 years	Run time under 10 minutes from full charge

How to Find Your Shark Model Number

The model number is on a sticker on the back or underside of the vacuum body: not on the cleaning head. It starts with letters followed by numbers (NV752, HV301, IZ162H). Write it down before ordering any part; Shark uses different part numbers across models even when parts look identical.

OEM vs Compatible Shark Parts

OEM (original equipment manufacturer) parts are made by Shark. Compatible parts are third-party equivalents made to fit. For filters and brushrolls, compatible parts work well at a lower cost. For electrical components like switches, motors, and battery packs, OEM is the safer choice: tolerances matter more.

Find Shark Vacuum Parts at EZvacuum

EZvacuum stocks replacement parts for the full Shark lineup: Navigator, DuoClean, Rotator, Rocket, and ION series. Browse by model or part type:

• All Shark vacuum replacement parts
• Shark brushrolls by model
• Shark filters and filter kits

If you are not sure which part fits your model, check the product listing: compatibility is listed by model number on each page. Orders over the free shipping threshold ship at no cost, and all parts come with a 365-day return policy.
