Ametek Lamb

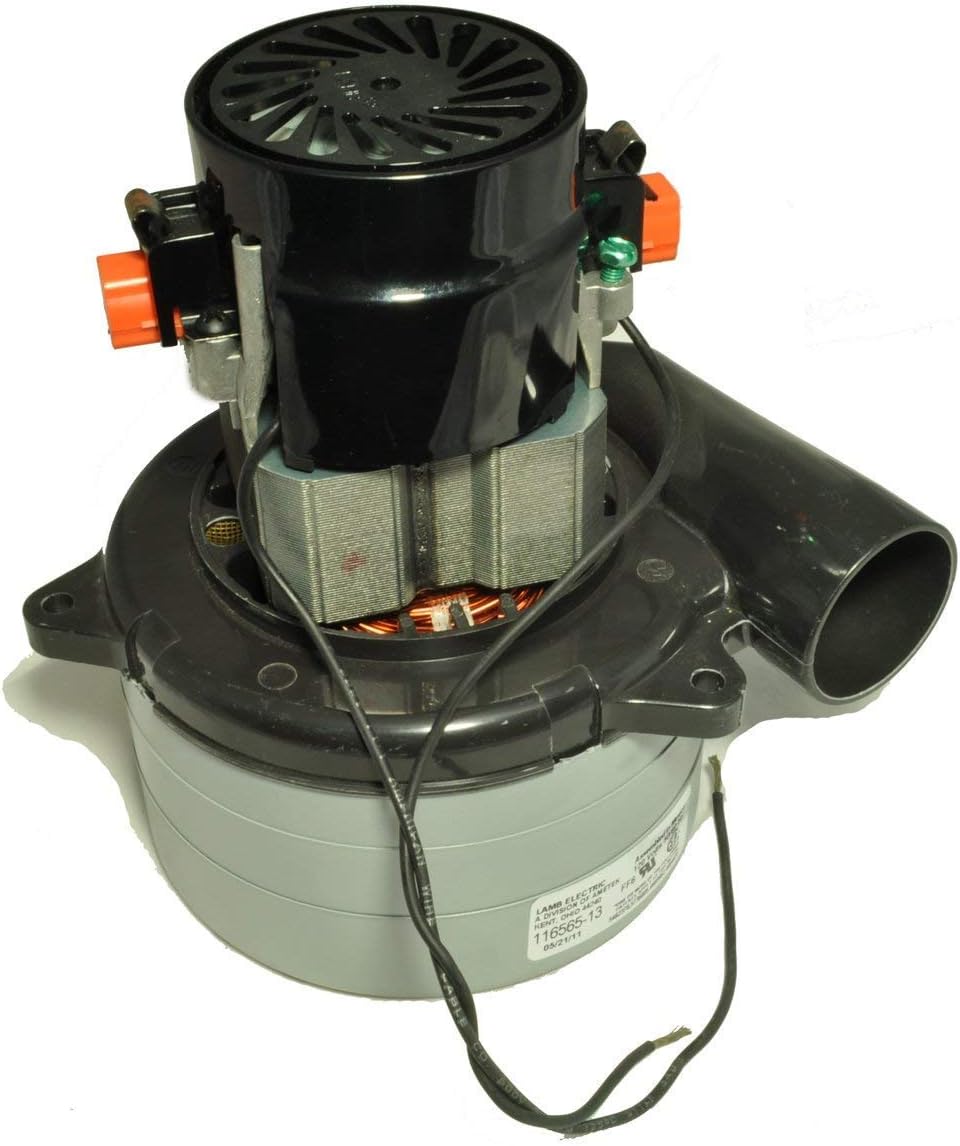

Ametek Lamb 116565-13, 3 Stage Vacuum Motor 5.7in, Tangential, 120V
Ametek Lamb 116565-13, 3 Stage Vacuum Motor 5.7in, Tangential, 120V
SKU: 116565-13
Couldn't load pickup availability
- Single-speed, three stage electric thru-flow vacuum motor
- 120 V operation, capable of moving up to 99.0 CFM.
- Specially designed for moving clean and dry air - perfect for your car wash vacuum systems.
The Ametek Lamb 116565-13 vacuum motor is a great option for thru-flow vacuum needs, with a compact 5.7 inch diameter. Its plastic fan end bracket offers a balance of lightweight and durability. It is designed specifically for clean, dry, filtered air and units with air-sealed bearings provide extra defense against dirt and moisture. This motor is ideal for use with commercial canister and utility vacuum units, as well as sprayers, foggers, and central vacuum systems at car washes or auto shops.
Fits: Olympus, Hydro-Force FX and EX, Prochem, Mytee, Century, Sandia Plastic, Clean Storm, and many other machines.
Motor Specs:
Motor Type: Bypass
Discharge: Tangential
Bearings: Double Ball Bearing
Sealed Vacuum: 117.4 inches
Maximum Air Watts: 368
Maximum Air Flow: 99 CFM
Maximum Amp’s: 10.70
Motor Speed: 17,700 RPM
Will Replace all these below:
- AV14
- Q6600-054AMP
- 0297546
- 116565-13
- Tennent 130416
- 130996
- Tornado 19118
- Powrflite 19118
- 30041
- 408G
- 44911A
- 53130
- Advance 56209095
- Advance 56265096
- 740089
- Prochem 8.685-458.0
- 86854580
- 993-1740
- A13504
- ASM130416
- ASM130996
- ASM56409
- CI-130416-EA
- VM-25
- VV67154
- ZD63000A
- Sandia Plastic 10-0810
- Powrflite 1920
- 19118
- X9079
- A64342
- 64342
