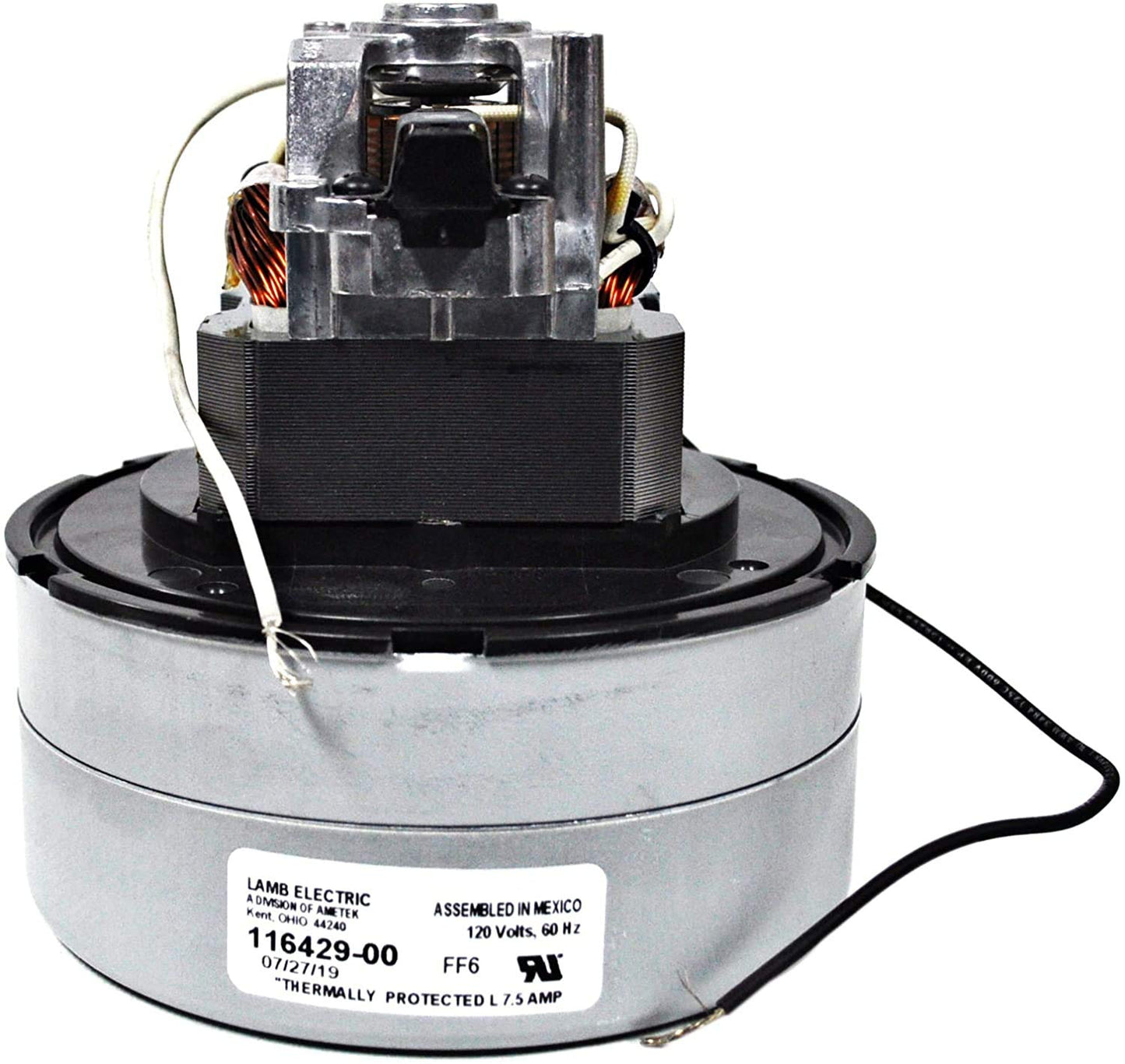

Ametek Lamb 5.7 Inch 2 Stage 120 Volt B/S Thru-Flow Vacuum Motor #116429-00

This is a central vacuum motor by Ametek Lamb and is 120Volts AC Vacuum Motor, Thru-Flow, 1000 W, 5.7 Frame Size, 2 Stage.
Specifications:
Voltage: 120
Carbon Brush: 33326-3
Motor Stages: 2
Motor Speeds: 1
Motor Type: Series Universal
Motor Frequency: 50/60Hz
Motor Fan Diameter: 5.700
Fan System Style: Through-Flow
Motor Low Temp: 32.000
Motor High Temp: 104.000
Motor Bearing: Ball/Sleeve
Motor Comm Bracket Material: Aluminum
Motor Fan Bracket Material: Plastic
Motor Insulation Class: A
Motor Fan Shell Coat: none
Motor Duty Cycle: Intermittent
Motor Electrical Connection: Lead Wires
Weight (lbs): 6.000000


Works on many central vacuums including
AstroVac SR-34
ACV 90
NuTone CV-352
Pullman BIV-99
Pullman BIV-205 (as Top Motor)
PowerKing PK36
Vacumaid P-70
