Ametek Lamb

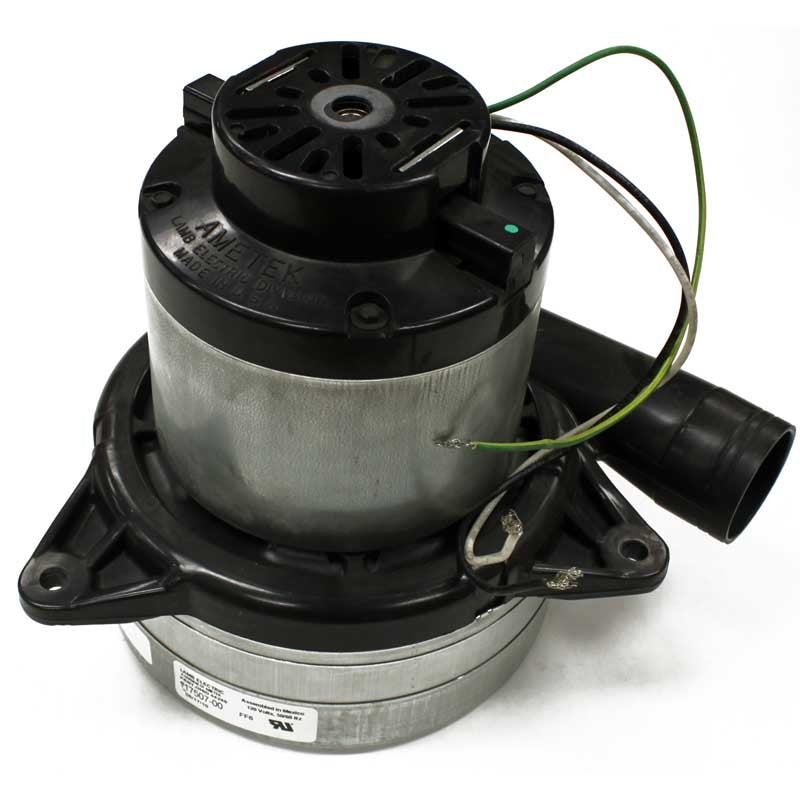

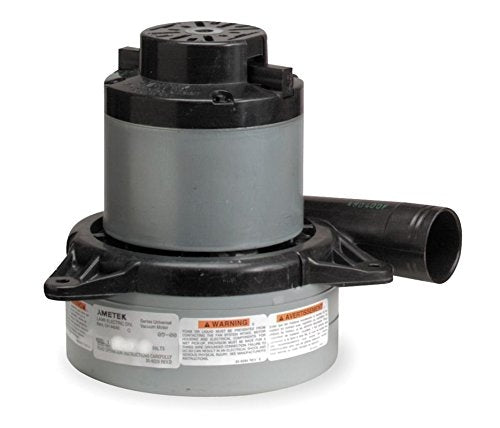

Ametek Lamb Vacuum Blower / Motor 3-Stage, 7.2 Inch Diameter, 110-120 Volts 117507-00

Ametek Lamb Vacuum Blower / Motor 3-Stage, 7.2 Inch Diameter, 110-120 Volts 117507-00

SKU: 117507-00

$259.99
$259.99
Sale Sold out
 More payment options
Free Shipping
Free Shipping

Easy Returns
Easy Returns

Need Help?
Need Help?

View full details
This motor is a 7.2" 120 volt, B/B, 3 stage, Tangential bypass motor. Used in several central vac models including the Nutone CV353. Also replaces 116507-00 120 VAC 50-60 Hz, 747012 and 117470, 140242, 140243, 7694-01.

This motor can be used for
AstroVac MK-XXIII, MK-XXVIII
BEAM 297, 297C, 297D, 297F, 297G, 297S, 297SP, 299A, 2240, 2240A
Broan CV-28, V28C
Brute 99025, 99026, 99150, Hi-Performance 99025, Power Performance 99026, Cyclonic 99150
Budd 7811
Dust Care DCC5
Eureka CV2002B, CV2002CF, CV2002D, CV2101D, CV2101F, CV2101FF, CV2101X
Nutone 353, CV353, CV553, CV653
Powerstar 99025, 99026, 99150
Vacuflo 360, 860
WalVac 247

Lamb Ametek 117507-00 motor is 3-stage, 7.2 inch, 110-120 volt.
Motor Type: Bypass
Discharge: Tangential
Bearings: Double Ball Bearing Sealed
Vacuum: 134.1 inches Maximum Air Watts: 406 Maximum
Air Flow: 94 CFM
Motor Speed: 17,200 RPM
Height - 8.5"
Bottom Diameter - 7.2"

Customer Questions & Answers

Q: The motor in our CV-353 is stenciled with model 116507-00. Do you carry and what is the price? - asked by Joseph OReilly
Asked on 2024-01-11 19:20:55
No answers yet.
Q: I need to replace cv 353w does the w change motor spec? - asked by Dave
Asked on 2020-02-23 01:14:48
A: This will work
EZvacuum Support answered on 2020-02-24 02:38:47
Q: Will this fit a nutone 353 (not CV353) - asked by Paul Tollini
Asked on 2019-02-21 01:19:34
A: Please check this one: https://www.ezvacuum.com/ametek-lamb-115334-2stage-72-inch-vacuum-cleaner-motor-p-1113.html
Support answered on 2019-02-22 00:32:50
Q: Is it used motor or new ?Thank's - asked by Sylvain Boutin
Asked on 2019-01-05 02:11:15
A: Brand New
Support answered on 2019-01-05 02:35:56
