• MOTOR,LAMB 119-347,1 STAGE 120 VOLT,5.7 INCH
1 1

Ametek Lamb

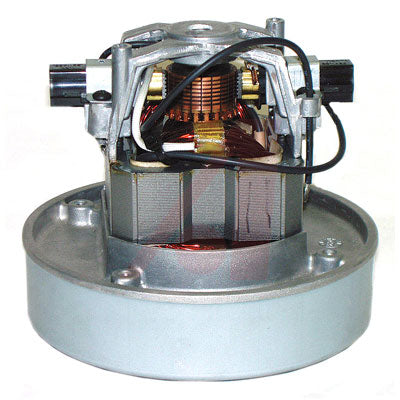

Ametek Lamb Vacuum Motor 120V, 5.7", 1-stage, thru-flow #119347-00

Ametek Lamb Vacuum Motor 120V, 5.7", 1-stage, thru-flow #119347-00

SKU: 119347-00

$104.99
$124.99 $104.99
Sale Sold out
Free Shipping
Free Shipping

Easy Returns
Easy Returns

Need Help?
Need Help?

View full details
Designed to move clean and dry air. Ideal for use in commercial canister or utility vacuums, sprayer/foggers, material handling and transfer systems, car wash, and central vacuum systems.

This motor also replaces Proteam Supercoach motor 101719 and Proteam Motor 105162. Also fits many Kenmore canisters using motor 700589. Uses 33326-1 Carbon brushes shown in related items.
This motor also works for Eureka canisters 500 through 700, 822, 832, 842, 1244 through 1255, 1268, 1271, 1273, 1620, 1640A, 1810A, 3200 series, 3400 series; Advance Carpetriever, new Carpetwin 140, Shop Vac models 612-21, 612-22, 612-24; Westinghouse, some dry Shop Vacs and Shetland, and some Kenmore Vacuum Cleaner models. This motor is also use in many Proteam models.

Technical Specs




  • Item Vacuum Motor

  • Motor/Blower Type Thru-Flow

  • Discharge Thru-Flow

  • Blower Stages 1

  • No. of Speeds 1

  • Motor Enclosure Design Open

  • CFM @ 2-In. Orifice 147.0

  • Vacuum (H2O Sealed) 98.0

  • Voltage 120

  • Hz 60/50

  • Phase 1

  • Max. Amps 12.0

  • Max. Air Watts 500

  • Motor Mounting Type Lug



  • Motor Design Universal AC/DC

  • Motor Mounting Position All Angle

  • Motor Thermal Protection None

  • Ins. Class A

  • Bearings Ball

  • Ambient Temperature 40 Degrees C

  • Body Dia. 5.7"

  • Overall Height 4-3/4"

  • Mounting Brackets Aluminum

  • Duty Intermittent

  • Average Life 500 hr.

  • Motor Efficiency Group Energy Efficient

  • Standards UL Listed (E47185), CSA Certified (LR31393)

  • Replacement Brushes 2UV81



Customer Questions & Answers

Q: I need to purchase one of these for an older kenmore canister vacuum. Please let me know when these will be available again for purchase. - asked by Richard Danchi
Asked on 2024-12-03 04:49:55
No answers yet.
Q: Will motor #119347-00 fit my Kenmore Whispertone model #116.2148090? If not, what motor will replace the original Lamb motor? - asked by MS Jacobs
Asked on 2020-03-08 01:40:51
A: Only if you have motor 700589 currently in the machine.
EZvacuum Support answered on 2020-03-09 09:45:02
Q: Hi,Will #119347-00 fit Kenmore Premier 5.1 Peak HP model #116 2345190. If not do you have an electrical motor that I can retrofit inside fan case? - asked by John
Asked on 2019-02-02 04:30:27
No answers yet.
