Ametek Lamb

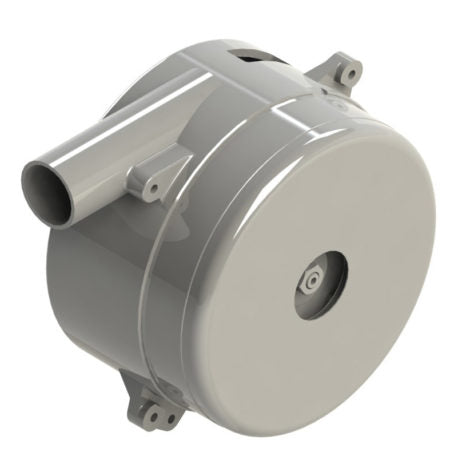

Ametek Windjammer 116634-03 120 Volt Brushless Blower Motor
Ametek Windjammer 116634-03 120 Volt Brushless Blower Motor
SKU: 116634-03
Regular price
$1,499.99
Regular price
Sale price
$1,499.99
Unit price
per
Couldn't load pickup availability
About this item
Special Return Instructions: If you have some issue with this motor, it must be taken up directly with the manufacturer. You can only return this to manufacturer and have this troubleshooted by them. A replacement will be processed directly by the manufacturer. We will not be in a position to check the motor or issue a replacement or a refund.
Special Return Instructions: If you have some issue with this motor, it must be taken up directly with the manufacturer. You can only return this to manufacturer and have this troubleshooted by them. A replacement will be processed directly by the manufacturer. We will not be in a position to check the motor or issue a replacement or a refund.
Specifications:
120 volt
5.7 inch diameter 1-stage By-Pass motor
1.25 inch diameter output tube
Overall height of 6.0 inches
UL Type B
Maximum amps of 4.0
250 watts
31 inches of water lift (H2O)
68 CFM at 2 inch orifice
Control Type: mechanical or electrical
Suitable for operational ambient temperatures of 0-50 degrees centigrade
Design Features:
UL Component Recognized
CSA and TUV Certified
RoHS approved (Restriction of Hazardous Substance Directive). Restricts use of hazardous materials in electronic and electronic equipment
Adjustable Air Performance
Thermal Protection/Locked Rotor Protection
Compact in size
Long operational life
Low noise to power ratio
Working air is the cooling in this Thru Flow configuration
Applications:
Dental/medical evacuators
Medical drills
Heart pumps
Computer peripherals
Material handling
Air samplers and evacuators
Photographic hold down
Business machines such as printers and collators
Air beds
Vacuum forming equipment
Fuel cells
Textile machines
Paper handling-pick up, feed, transport separate
Cooling
Turning bars
Tape drives
ATM/banking equipment
Toner control in printers
Ink drying
120 volt
5.7 inch diameter 1-stage By-Pass motor
1.25 inch diameter output tube
Overall height of 6.0 inches
UL Type B
Maximum amps of 4.0
250 watts
31 inches of water lift (H2O)
68 CFM at 2 inch orifice
Control Type: mechanical or electrical
Suitable for operational ambient temperatures of 0-50 degrees centigrade
Design Features:
UL Component Recognized
CSA and TUV Certified
RoHS approved (Restriction of Hazardous Substance Directive). Restricts use of hazardous materials in electronic and electronic equipment
Adjustable Air Performance
Thermal Protection/Locked Rotor Protection
Compact in size
Long operational life
Low noise to power ratio
Working air is the cooling in this Thru Flow configuration
Applications:
Dental/medical evacuators
Medical drills
Heart pumps
Computer peripherals
Material handling
Air samplers and evacuators
Photographic hold down
Business machines such as printers and collators
Air beds
Vacuum forming equipment
Fuel cells
Textile machines
Paper handling-pick up, feed, transport separate
Cooling
Turning bars
Tape drives
ATM/banking equipment
Toner control in printers
Ink drying
