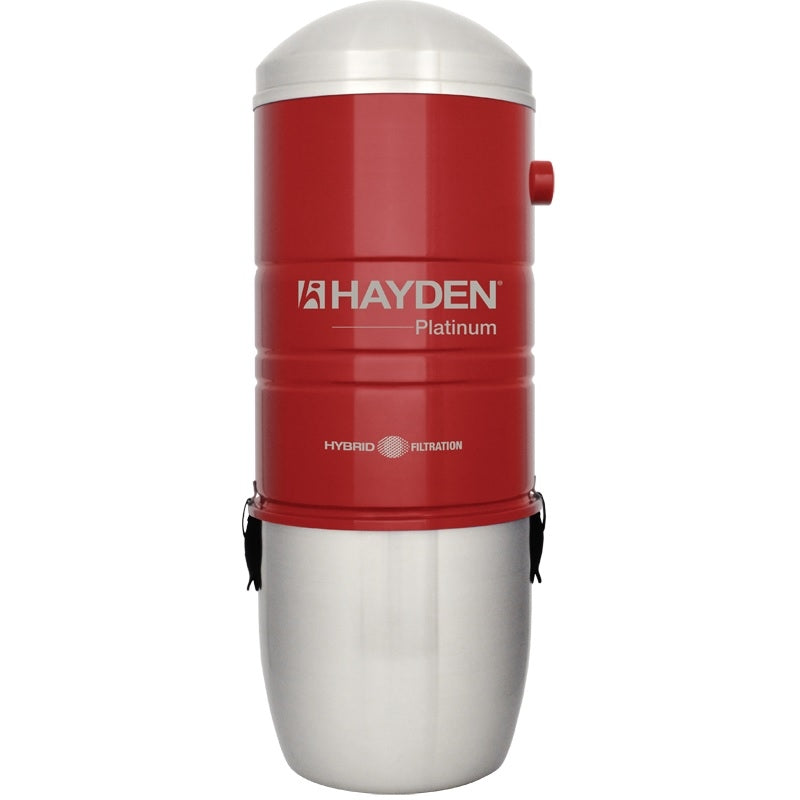

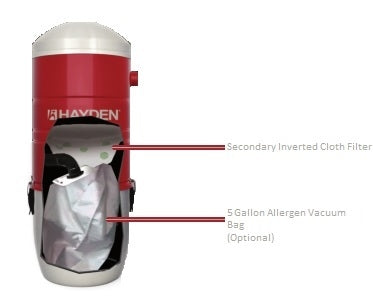

New model. History of great Hayden performance. This unit provides hybrid filtration: filter or bag, features a steel and brushed aluminum body, and includes a 10-year warranty*. This unit is for a cleaning surface of up to 10,000 sq. ft. The new Platinum Hybrid central vacuum has a high-performance motor with 3-turbines giving the unit incredible suction to eliminate dust and allergens from the home. The 3.8 gal dirt bucket is made from 18-20 gauge stainless steele and has large latches located on either side of the canister making emptying the central vacuum easier. The Hybrid unit may be run with or without a bag, has a 3-layer electro static bag and inverted cloth HEPA filter.

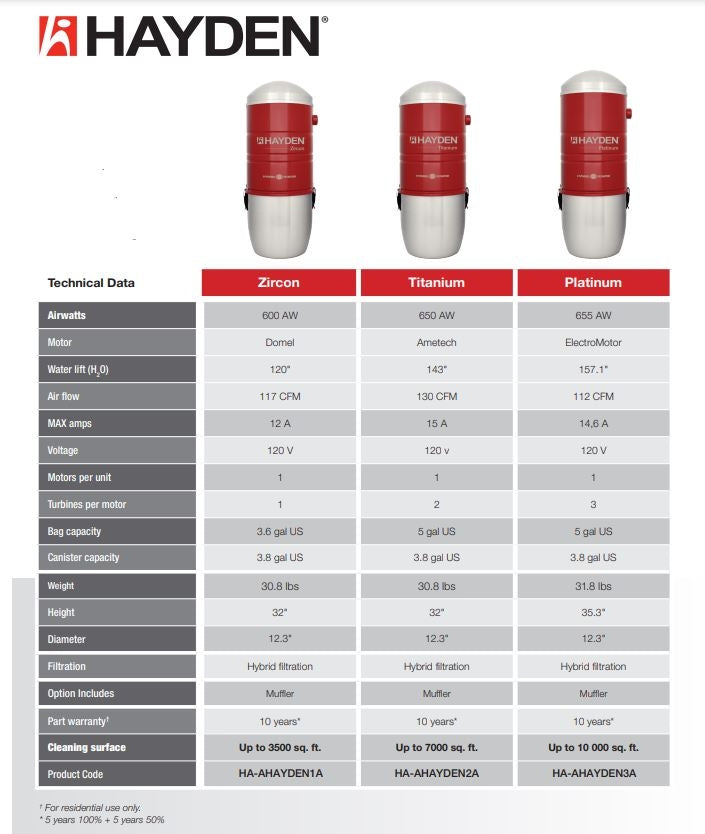

Airwatts 655AW
Motor ElectroMotor
Waterlift (H20) 157.1"
Airflow (CFM) 112
Max Amperage 14.6A
Voltage 120V
Motors per unit 1
Turbines per Unit 3
Bag capacity (US Gal) 5
Canister Capacity (US Gal) gal
Weight (lbs) 31.8
Height 35.3"
Diameter 12.3"
Filtration Hybrid
Option Muffler
Residential Warranty Up to 10 Yrs
Cleaning Area (Sq. Ft.) 10000
The HEPA filtration technology consists of high efficiency filters which provide 99.5% of filtration for particles up to 0.3µm. Hayden vacuums enclose dust using its high suction power. Equipped with Hepa filtration, these vacuum systems allow you to enjoy a healthier environment.
Some of the Hayden central vacuum systems are compatible with the Retraflex retractable hose that automatically store itself inside the walls. In addition, every product can be used with many different accessories which will ease home maintenance and will adapt to your lifestyle. Ask us for recommendation.

- 655 Airwatts
- 157.1" water lift.
- 120 volts.
- 3 turbines per motor.
- 5 gallon bag capacity.
- Height: 35.3".
- Diameter: 12.3"
- Cleaning surface: up to 10,000 sq. ft.
Airwatts 655AW
Motor ElectroMotor
Waterlift (H20) 157.1"
Airflow (CFM) 112
Max Amperage 14.6A
Voltage 120V
Motors per unit 1
Turbines per Unit 3
Bag capacity (US Gal) 5
Canister Capacity (US Gal) gal
Weight (lbs) 31.8
Height 35.3"
Diameter 12.3"
Filtration Hybrid
Option Muffler
Residential Warranty Up to 10 Yrs
Cleaning Area (Sq. Ft.) 10000
The HEPA filtration technology consists of high efficiency filters which provide 99.5% of filtration for particles up to 0.3µm. Hayden vacuums enclose dust using its high suction power. Equipped with Hepa filtration, these vacuum systems allow you to enjoy a healthier environment.
Some of the Hayden central vacuum systems are compatible with the Retraflex retractable hose that automatically store itself inside the walls. In addition, every product can be used with many different accessories which will ease home maintenance and will adapt to your lifestyle. Ask us for recommendation.

Customer Questions & Answers
Q: I have a question regarding vac intake/exhaust location on platinum series. I have an old 9000 series Hayden. Do you have phone contact?
No answers yet.
