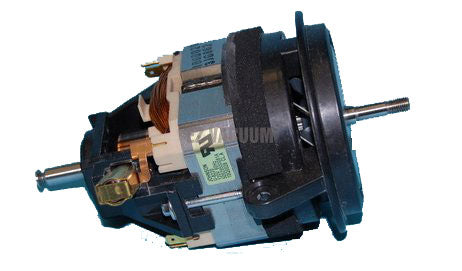

Oreck Upright Motor for XL100, 9100, 9200. Part 097550501 / 097553501, MTR297

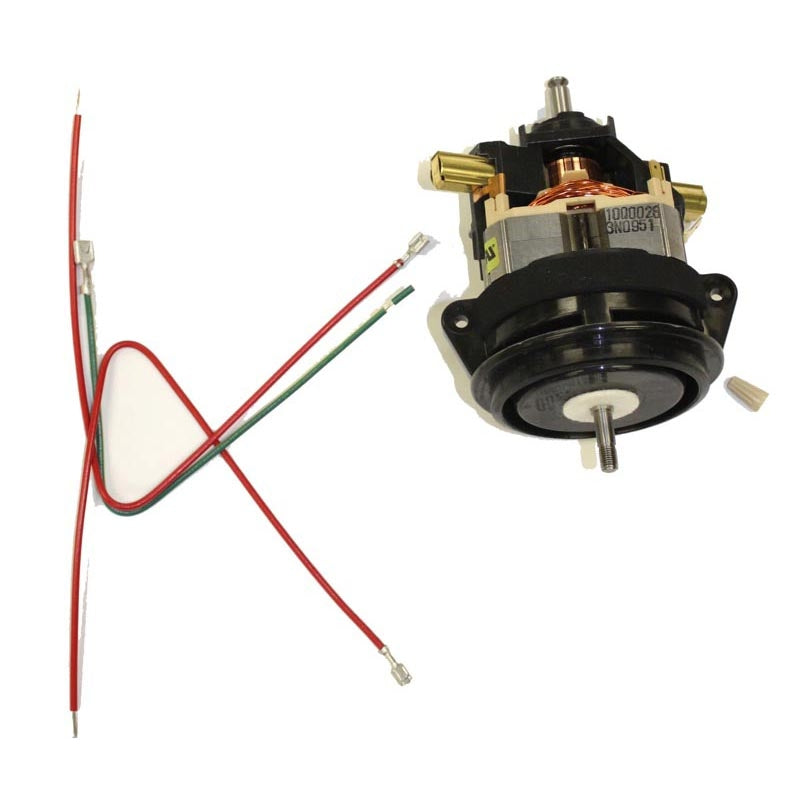

Oreck vacuum cleaner main motor fits all Oreck uprights except Oreck XL21. Motor kit includes motor, ground jumper wire, wire nut and switch jumper wire. Does not include Oreck Fan or Fan nut. Oreck part 097553501 or 097550501. Brand new not refurbished. 58-8500-07, O-017-0020, 119550-00, 09-75886-01, O-097588601, 7520701

Fits Oreck XL Upright models including

U2000E, U2000E2, U2000EB, U2000H, U2000H2, U2000HH, U2000R, U2000RB, U2000RSB, U2160HH, U2170HH, U2200RD, U2250RS , U2251RS, U2310RD, U2310RSF, U2330RD, U2510RH, U2520RH, U2530RH, U2540RH, U2630HHG, U2630HHR, U2640RH, U2650HHB, U2650HHR, U2650HHW, U2740RD, U3120HH, U3140HH, U3620HH, U3640RH, U3700HH, U3710HH, U3720HG, U3720HR, U3760HH, U3761HH, U3770HH, U3771HH, U3772HHB, U3772HHG, U3772HHT, U3773FL, U3773GA, U3773LSU, U3773OSU, U3773TN, U3773TX, U3773TXAM, U3780HH, U3785HHM, U3785HHT, U3795HHS, U3800HH, U3980H2B, U3990H2B, U4070H2L, U4080H2B, U4080H2R, U4080H2Y, U4090H2B, U4090H2G, U4090H2P, U4090H2T, U4120H2B, U4120H2P, U4120H2R, U4140HH, U4150H2P, U4150H2R, U4151H2G, U4160HH, U4170HH, U4180HHC, U4180HHT, U4200H2, U4490HH, XL2000HH, XL2000RH, XL2000RS, XL2070RH, XL2090RHM, XL2090RSM, XL2100HH, XL2100RH, XL2100RS, XL2200RS, XL2250RS, XL2260RS, XL2300RS, XL2310RS, XL2320RH, XL2330HS, XL2330RS, XL2400RS, XL2450RH, XL2500HH, XL2500RH, XL2540RH, XL2600HH, XL2610HH, XL2700HH, XL2700RH, XL2700RHY, XL2800H2B, XL2800H2US, XL2800H2W, XL2800HAY, XL3505HH, XL3600HH, XL3600RH, XL3605HH, XL3610HH, XL3640HH, XL36R7HH, XL3800H2B, XL3900H2B, XL3910H2B, XL5-105HH, XL9000D, XL9000W, XL9100C, XL9100HG, XL9200, XL9300, XL9300C, XL9300G, XL9300H, XL9300MM, XL9300MS, XL9300S, XL9800 and more

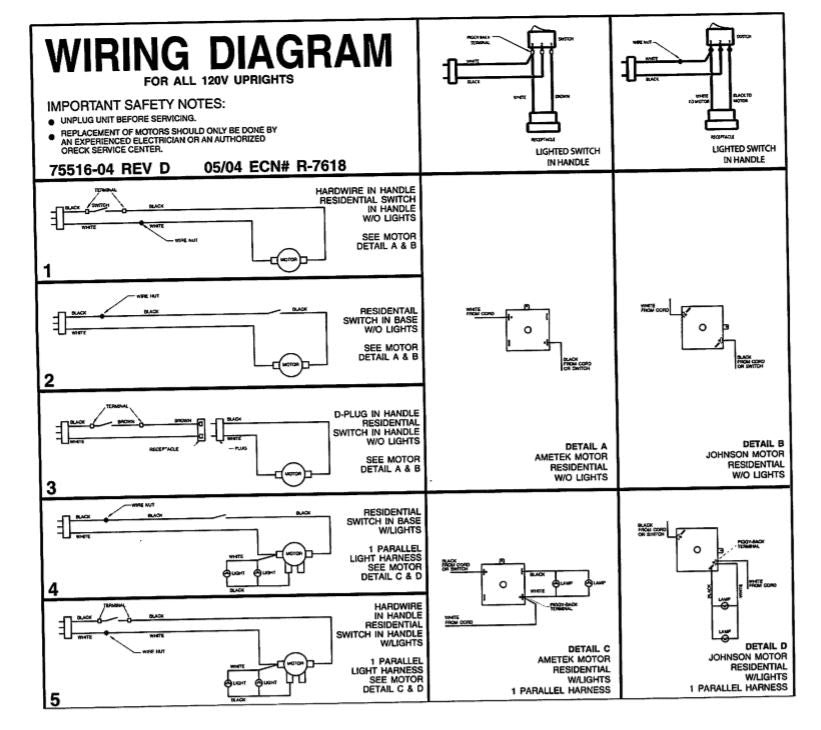

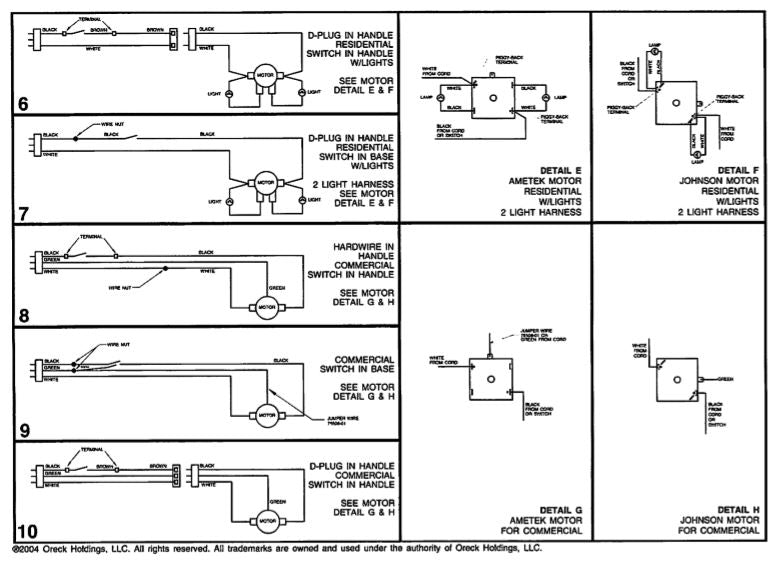

Oreck Motor Wiring Diagram
