TriStar, Compact Vacuum Cleaner Motor 2-stage, 5.7 inch, 110-120 volt.
TriStar, Compact Vacuum Cleaner Motor 2-stage, 5.7 inch, 110-120 volt.
SKU: l-116311-01
Regular price
$99.99
Regular price
Sale price
$99.99
Unit price
per
Couldn't load pickup availability

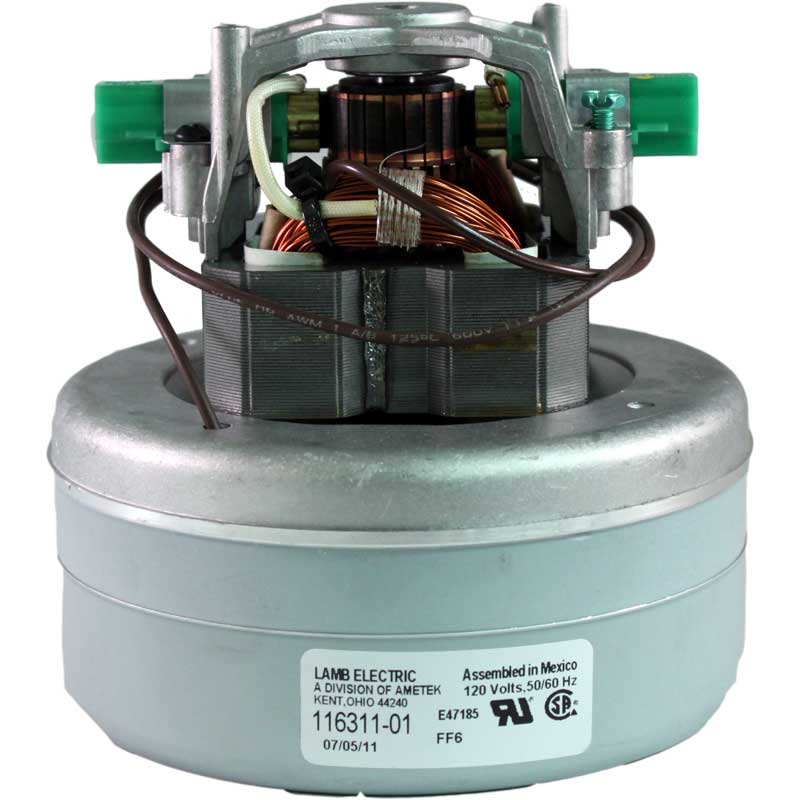

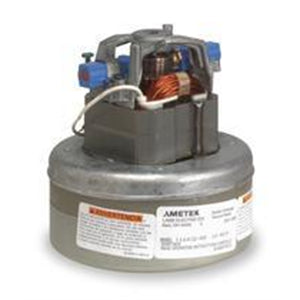

This motor is a 5.7", 120 volt, B/B, 2 stage, Thru-Flow motor. This motor is designed to fit several models including Eureka one speed 2 stage canisters, Filter Queen 31,350 and 500. Also, Mastercraft, Airway, Kingston, Royal and Kent. You can use L-33384 for the carbon brush.
Motor Specs
Motor Type: Thru Flow
Discharge: Peripheral
Bearings: Double Ball Bearing
Sealed Vacuum: 91.2 inches
Maximum Air Watts: 245
Maximum Air Flow: 95 CFM
Motor Speed: 18, 390 RPM
Fits the older TriStar Canister Vacuums including the following models:
Compact Tri Star With P/N 2-51, 2-54, 2-101, 2-102
2-51, 2-54, 2-101, 2-102, C1, C2, Revelation, C4, C5, C6, C7, C8, C9, CXL, DXL, and EX20
Note: Does not fit models with a 2 speed motor as the 2 speed motors have 3 or 4 wires but this motor has only 2 wires.
Does not fit the newer A101, EXL, MG1 and MG2 models.

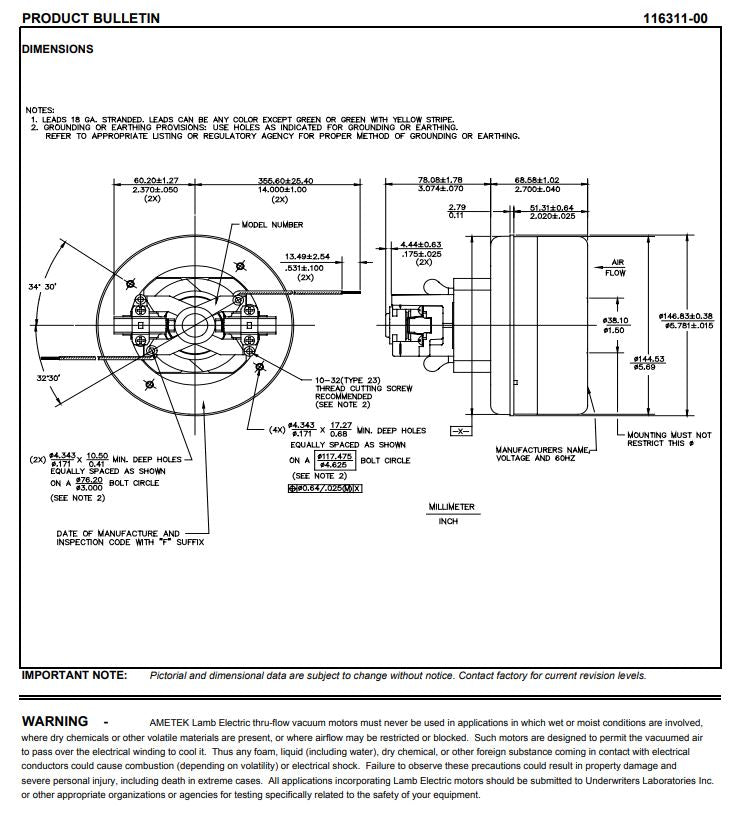

Motor Dimensions
Blower Housing Dia: 5.7″
Height: 5 9/16″
Motor Specs
Motor Type: Thru Flow
Discharge: Peripheral
Bearings: Double Ball Bearing
Sealed Vacuum: 91.2 inches
Maximum Air Watts: 245
Maximum Air Flow: 95 CFM
Motor Speed: 18, 390 RPM
Fits the older TriStar Canister Vacuums including the following models:
Compact Tri Star With P/N 2-51, 2-54, 2-101, 2-102
2-51, 2-54, 2-101, 2-102, C1, C2, Revelation, C4, C5, C6, C7, C8, C9, CXL, DXL, and EX20
Note: Does not fit models with a 2 speed motor as the 2 speed motors have 3 or 4 wires but this motor has only 2 wires.
Does not fit the newer A101, EXL, MG1 and MG2 models.
Motor Dimensions
Blower Housing Dia: 5.7″
Height: 5 9/16″
Customer Questions & Answers
Q: Do you sell replacement parts to fit this motor. For example I am wanting to purchase the aluminum bracket that holds the main rear bearing.
No answers yet.
Q: Would this fit Bissell Model 3760-HLooking to replace motorPrt # B-203-6789 or VCM K30VSBB
No answers yet.
Q: Would this motor fit a Eureka Model 1756 D canister vacuum cleaner? Is it possible to obtain motor brushes for the motor in this same model separate
A: Are you looking for the power nozzle motor? If yes, then here it is https://www.ezvacuum.com/eureka-power-nozzle-motor-with-1-inch-shaft.html
answered on 2019-06-04 20:47:11
answered on 2019-06-04 20:47:11
Q: Does this include the thermal switch because my wife does not change the bag often enough and it was hot when it quite working.
No answers yet.
